DRV8323HRTAR
Manufacturer:
Texas Instruments
Mfr.Part #:
DRV8323HRTAR
Datasheet:
Description:

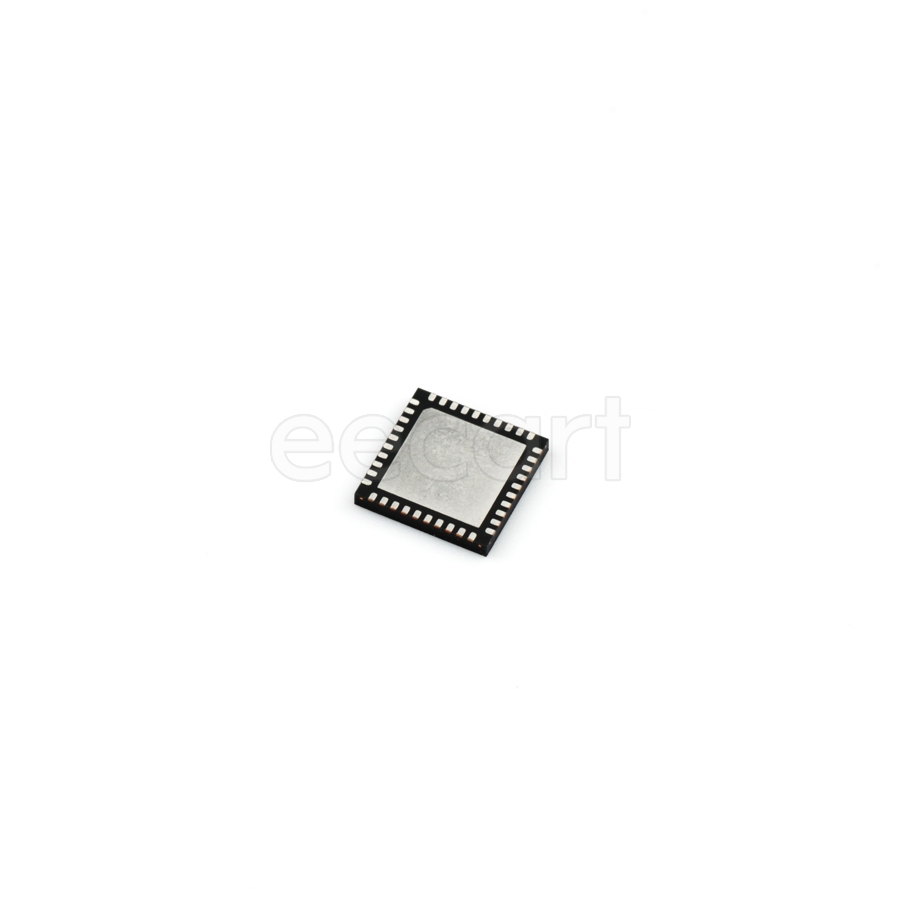

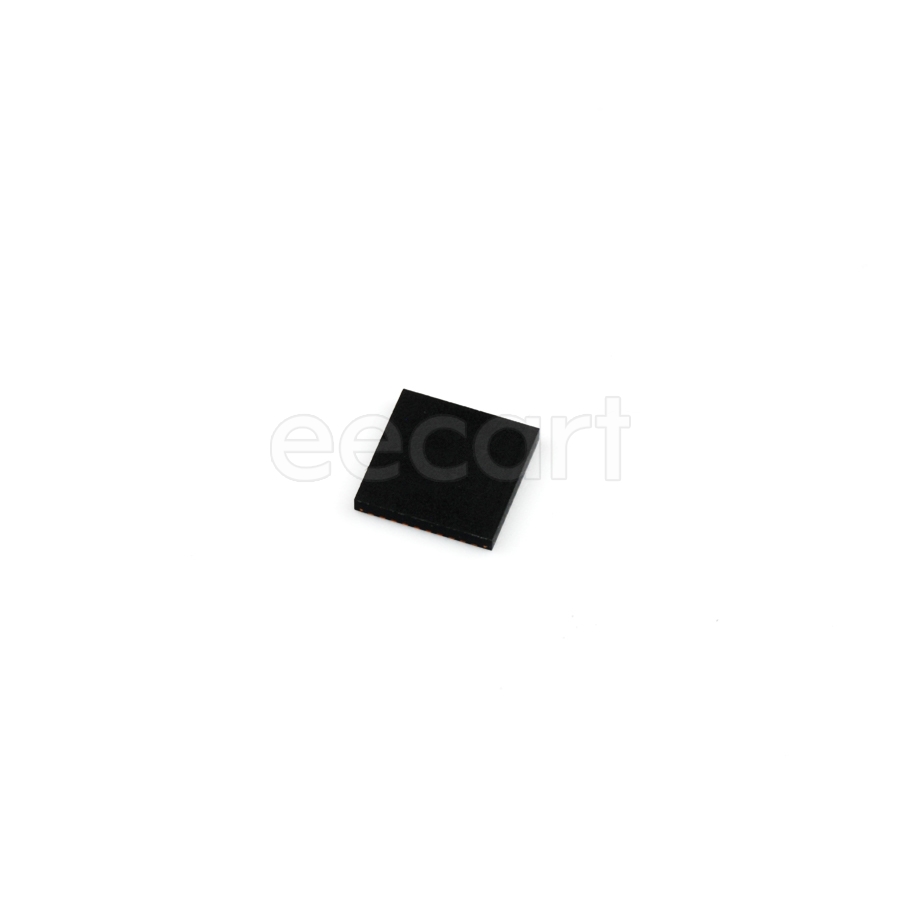

Motor Drivers WQFN-40 LLC(QFN) Hardware Half Bridge (3)
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Width | 6 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 40 |
| Height | 800 µm |
| Packaging | Reel |
| Thickness | 0.75 mm |
| RoHS | Compliant |
| Interface | Hardware |
| Output Current | 1 A |
| Operating Supply Voltage | 6 V to 60 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 60 V |
| Min Supply Voltage | 6 V |
| Operating Supply Current | 10.5 mA |
| Output Configuration | Half Bridge (3) |
| Chemistry/Technology | Power MOSFET |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Applications | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management |
| Configuration | HighSide, LowSide |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC |
Stock: 16873
Distributors
pcbx
pcbxUnit Price$1.03978
Ext.Price$1.03978
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03978 | $1.03978 |
| 10 | $0.86707 | $8.67070 |
| 25 | $0.76249 | $19.06225 |
| 50 | $0.67053 | $33.52650 |
| 100 | $0.58966 | $58.96600 |
| 300 | $0.56464 | $169.39200 |
| 500 | $0.54068 | $270.34000 |
| 1000 | $0.51924 | $519.24000 |
